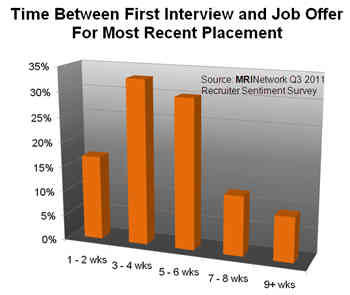

“On average, we are seeing employers take more than five weeks from a candidate’s first interview until an offer is made,” says Romaine. “After more than a month, what started as an exciting opportunity becomes a nerve-wracking process that has thrown the candidate’s future into limbo.”

Companies should not be fooled by a cool economy or a stubbornly high unemployment rate into thinking that it is an employer’s market.

“At the same time, when push comes to shove, for top talent, it always is a candidate-driven market,” notes Romaine. “Today we are seeing a tighter market for top talent than perhaps is typical. But in truth, top performers are sought after regardless of the economic cycle.”

To what extent should a company comply with ASME standards on their drawings?

ASME cutSome time ago, a visitor to SolidWorks Legion asked something similar to this:  Now that we decided to use them, to what extent should my company comply with the ASME standards on our drawings versus our own internal rules?

That is a complex and difficult question.  Purist will say, “Follow the standard exactly! Otherwise, why have a standard at all?”  Internal traditionalists will say, “We already have a way that works for us.  Why change what works?”

The answer, in my opinion, is in the middle.  ASME Y14.100-2004 paragraph 1.1 states that the ASME standard establishes essential requirements for the creation and revision of drawings and BOMs.  However, paragraph 1.2 then allows for “tailoring” of the standard to exclude unnecessary requirements.  Though this is not an explicit statement that allows outright customization, it does provide a crack in the door that may be used to justify such customization of the standard.  It is important to note that the ASME standard does not take the place of internal standards; it forms their foundation.  The ASME standard still leaves options open for individual companies to define for themselves.

In a company’s internal drafting standard, I recommend including the statement, “Exclude from practice any portions of any standards (e.g., ASME Y14.100) that differ from instructions within this document.”  This formalizes the effort to employ exceptions to the ASME standard.  However, this must be used with caution.

One area that is a good case for exceptions is in how a company might handle BOMs within the context of a PLM.  In such cases, it is often considered bad practice to list BOMs in two places (on the drawing and within the PLM).  It may be advantageous to store and control the BOM within the PLM, rather than on the drawing.  ASME does not address this.  However, as long as the PLM displays the BOM in a manner consistent with the intent of ASME, I don’t personally see any issue with relying solely on that PLM for BOMs.  The internal drafting standard should address such exceptions to ASME.

An area that is bad for exceptions is in the non-standard use of established symbols or abbreviations.  This is because the symbols and abbreviations are already defined by the ASME standards.  For example, if a company allows GD&T symbols to be used in a way that is not defined by ASME Y14.5-2009, a manufacturing vendor will not know how to properly interpret the custom use of the symbology.  ASME does not allow ambiguity on drawings.  However, if a company wishes to continue the use of a few of its own custom symbols and abbreviations, these need to be fully defined on each drawing or in an internal document that is referenced by the drawing.

In my opinion, this is the bottom line: leverage the ASME standards to save time and work (both in the creation and interpretation of drawings).  Try to adhere to ASME as much as possible.  Allow deviations that are necessary, but clearly state such exceptions within the company’s drafting standard or on the drawing itself (whichever works best for the situation).

My road to becoming a presenter at SolidWorks World

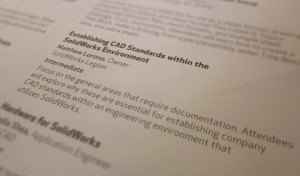

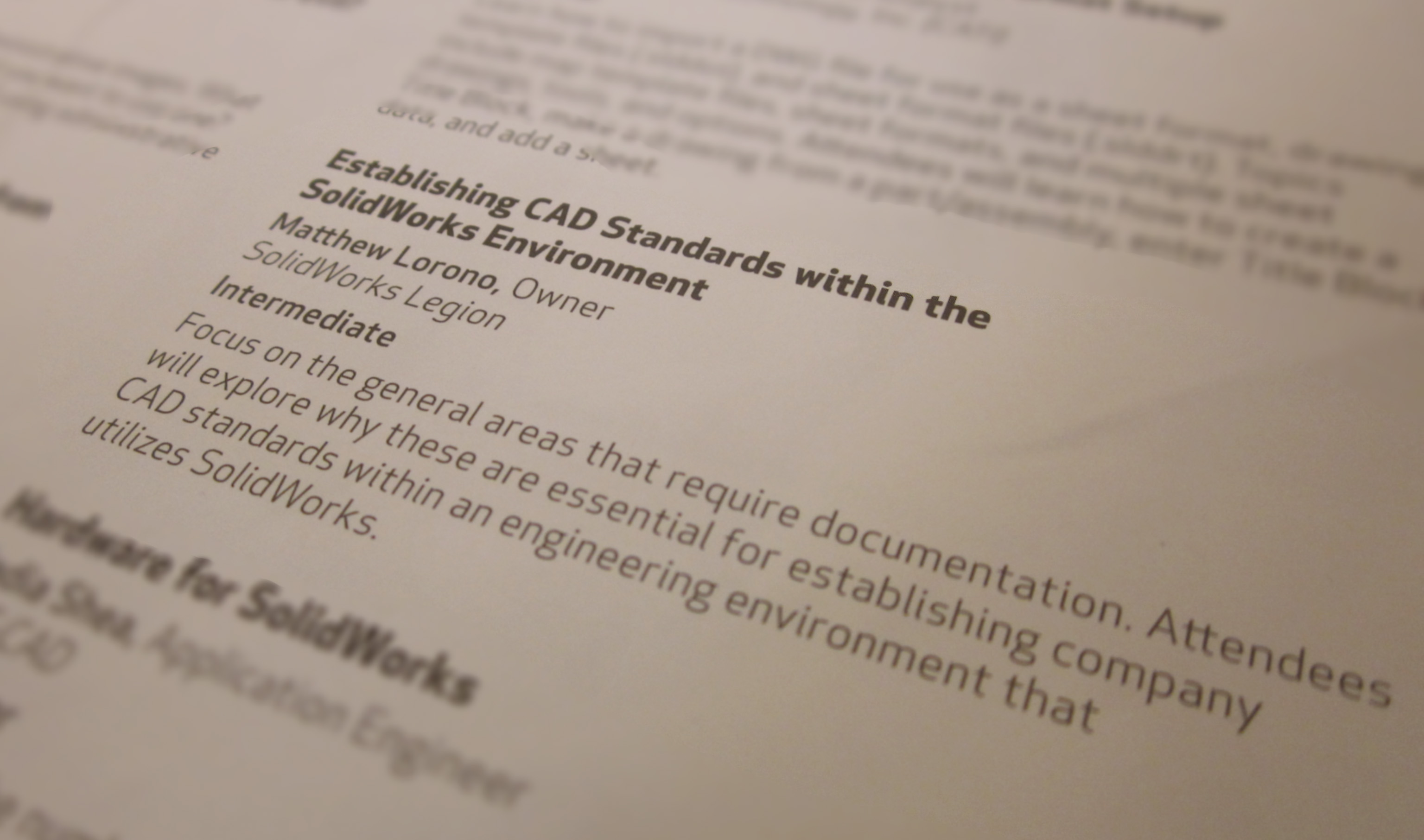

My presentation at SolidWorks World 2011I have now been to four SolidWorks World conferences.  My first was in 2008.  As with most attendees, my first time was overwelming.  So much information is packed into such a short time frame.  There are three general sessions and up to 11 opportunities to learn in breakout sessions.

The real value in SolidWorks World are those breakout sessions.  Nowhere else is it possible to learn from first hand interaction about so many different SolidWorks related topics in one place.  Yet, the topics aren’t just about SolidWorks itself.  One of the most helpful sessions I’ve attended was about how CAD can work within an FDA regulated environment.

This inspired me.  I wanted to present my own breakout sessions to share my knowledge.  What could I talk about?  Well, I know drawings very well.  In 2008, I submitted my first presentation proposal on drawings for SolidWorks World 2009.  It was rejected.

In the meantime, I started presenting locally at the SolidWorks User Group meetings.  I did two presentations (written about here and here) that covered SolidWorks World 2008 at the Tri-Valley SolidWorks User Group and the Silicon Valley SolidWorks User Group.

I also started presenting at the SolidWorks User Group Network Technical Summits.  In Los Angeles, CA in 2008, I gave a presentation on advanced drawing tips and tricks.  In San Jose, CA in 2010, I gave another well received presentation on advanced SolidWorks customization techniques.  If someone cannot make it to SolidWorks World, I recommend attending a Technical Summit when is in their area.

I didn’t submit any breakout session proposals for SolidWorks World 2010.  It turns out that I ended up being a co-presenter of sorts for the Stump the Chumps II breakout session.  Jeff Mirisola organized this presentation.  My role was small, but this was my debut on a breakout session stage at SolidWorks World.

I was again inspired to submit my own breakout session proposals for SolidWorks World 2011.  To my delight, both of my proposals were accepted.  However, I soon realized that my time would be limited again.  I had to make the hard decision to withdraw one of my proposals.  This allowed me to focus on making sure my one presentation was high quality.  My presentation was Establishing CAD standards within a SolidWorks Environment, written about here.  (I’ll talk more about the content of my presentation at a later time.)

My presentation was well received.  I was approached by many individuals over the next two days at SolidWorks World 2011 to thank me for the presentation.  This was an unexpected bonus that made the whole endeavour very rewarding.  I’ve given back to the same community that has benefited my growth so much.  I hope that I will be able to give two presentations at SolidWorks World 2012!

SolidWorks World 2011 Monday General Session

What a difference a year makes.  Or, more to the point, what difference did the past year make in terms of SolidWorks news?  This year, the new CEO of SolidWorks, Bertrand Sicot, made a brief statement to clarify the announcements about cloud direction for the company.

We will always have a desktop CAD.

It will never be an either/or choice for you.

Sicot made a sincere effort to clearly state that a destktop version of SolidWorks will always be available.  However, I’ve seen companies make promises and statements all the time, then change their plans, sometimes the next day.  Even still, I’m glad to see the clarification from Sicot.

It appears they will continue to develop down the path to eventually offer CAD as a service over the Internet (commonly referred to by the term cloud or Software as a Service in some contexts).  At SolidWorks World 2010, the word cloud was spoken an uncountable number of times.  So far at SolidWorks World 2011, the word cloud has not been spoken by any SolidWorks representative.  What a difference a year makes.

Black Chem-film (mythical)

An old joke in the Engineering field is to send the newbie to go find some impossible thing. Unfortunately, black chem-film is asked for seriously at times.

An old joke in the Engineering field is to send the newbie to go find cable stretchers on the manufacturing floor.  Someone searching for black chem-film can feel just like that poor newbie.  Chem-film goes by other names, such as chemical conversion coating, iridite, or alodine (some of which are trademarked terms).  However, putting the word black in front of any of those will provide very disappointing results.

Chem-film is sometimes used instead of anodizing as a protective finish for aluminum.  Chem-film leaves a coating that is conductive to electricity.  Though an anodized surface may also be conductive, chem-film is more so.

A chem-film finish is typically yellowish or gold in appearance on aluminum, but may also be brown, gray or blue (depending on the substrate).  This is not the result of dyes.  Lighter processing can result in a clear finish.  Either way, the surface color comes from variations within the process itself, and not the result of any coloring additives.  Factors such as the reaction of the substrate with chromic acid, temperature, inhibitors, concentration, promoters, time, surface finish, and accelerators all play a role in the final surface color.  This contrasts with anodizing, which may be dyed to intentionally achieve a variety of colors.

Be cautious of a vendor that says it can provide black chem-film.  They may be using the term chem-film very loosely (i.e., incorrectly).   That said, if a vendor can legitimately produce a black chem-film coating on an aluminum substrate, they are invited to comment on this article.  Of course, I will ask that verification to any such claims be included within the comment, along with confirmation that results are compliant with MIL-DTL-5541F other similar standards.

On a side note, there may actually be black conductive coatings available for aluminum.  If I can get confirmation, I’ll mention those at a later date.

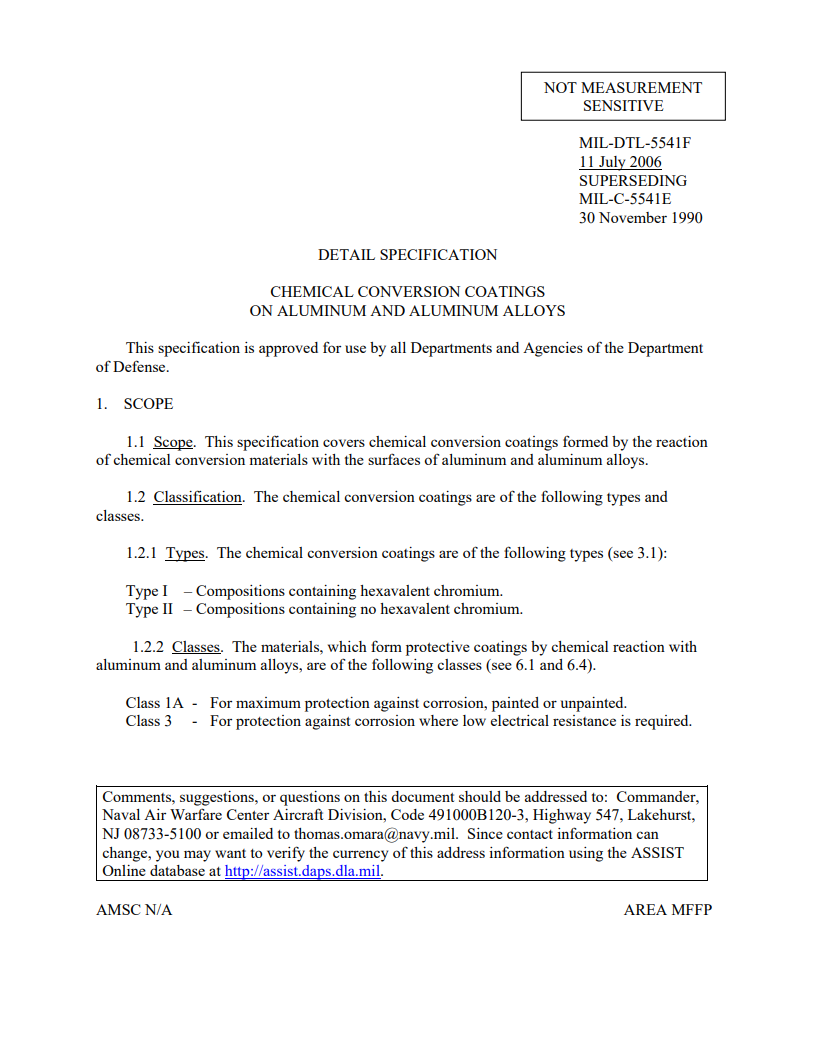

Reference: MIL-DTL-5541F (.pdf)

MIL-DTL-5541F does not support idea of Black Chem-film.
