Year of the Angle Dimension – Part 3 – Goodbye Zero

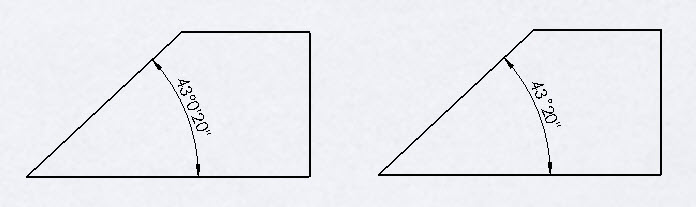

When you use angles that are set to deg/min and deg/min/sec, there are often times when you’ll have zero (0) for one of the levels of units.  For example, an angle may be 43 degrees, 0 minutes and 20 seconds.  This is displayed as 43° 0′ 20″.  For many people, the 0 minutes is redundent and unnecessary.  SOLIDWORKS 2015 now has an option that allows you to show only the unit levels that have a non-zero value.  For this example, the display is 43° 20″.  This new setting can found at Tools>Options>Document Properties>Dimensions/Angle, and named “Remove units with 0 value for deg/min and deg/min/sec”.
