What’s New in SolidWorks 2014: On-The-Fly Virtual Sharps While Dimensioning

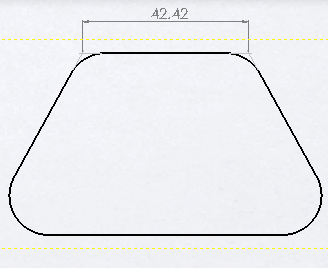

SolidWorks 2014 introduces the ability to find and use virtual sharps on the on-the-fly while creating dimensions.

  1. Start any dimension tool.
  2. Right-click on model or sketch geometry
  3. Choose “Find Intersection”.
  4. Left-click on any model or sketch geometry that intersect the first selection.
  5. The Virtual Sharp element is automatically added, the point is automatically applied as a selection for the dimension tool.

See the attached video below (AVI will open, not an embedded video).

 On-The-Fly Virtual Sharps while Dimensioning

On-the-fly Virtual Sharps (AVI video)
